Description

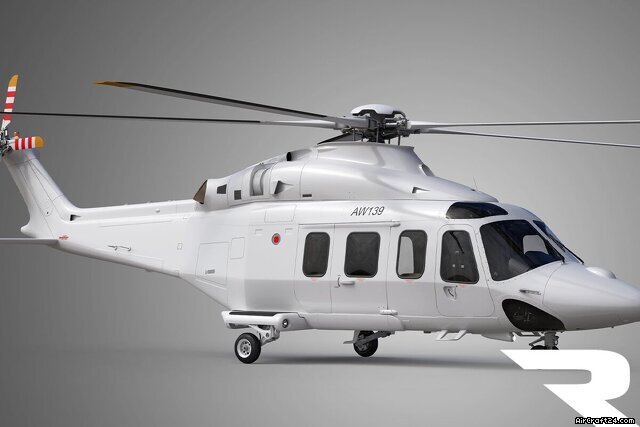

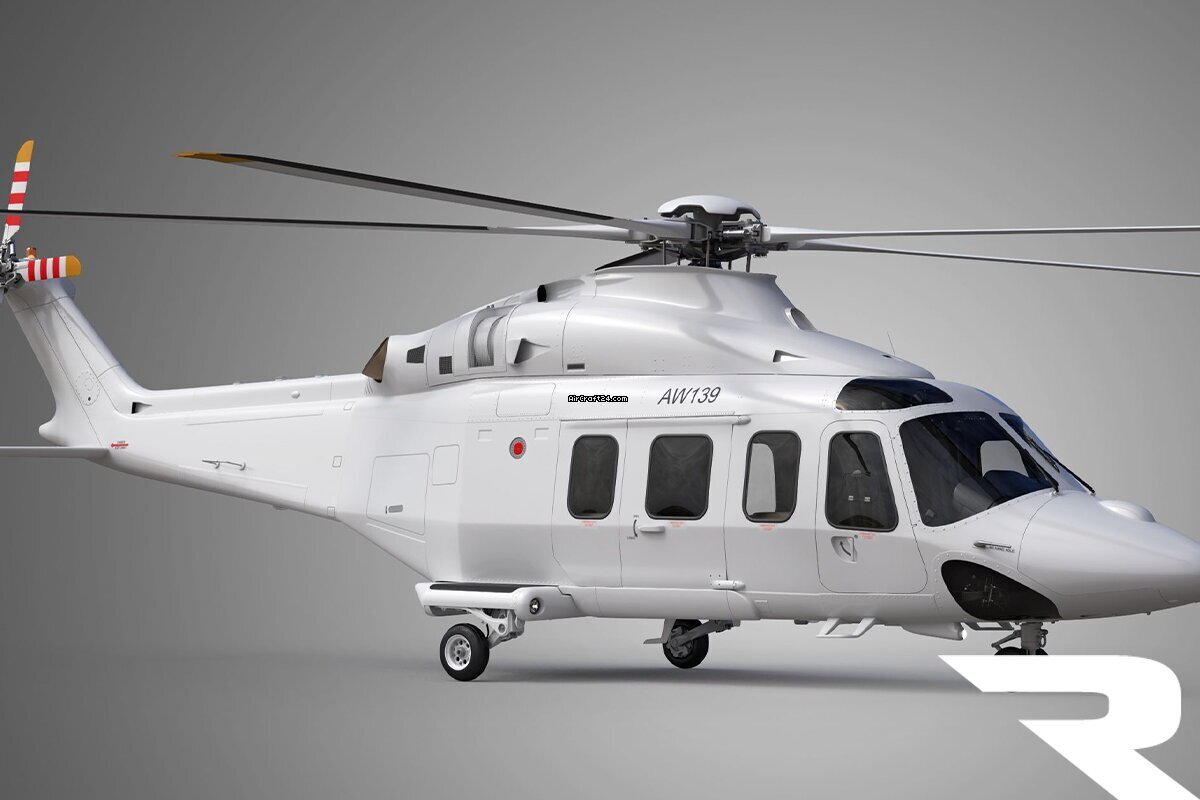

| Description | | Type: | Hélicoptère (Turbine) | | Marque: | Agusta | | Modèle: | AW139 | | Millésime: | 2026 | | Attributs: | Epreuve IFR
Enregistré usage commercial | | Emplacement: | France | | Heures totales cellule (TTAF): | 100 h | | Prix: | on request | | Détails |
| Seller |
Rotortrade
630 Churchmans Road, Suite 103
Newark, DE 19702
États-Unis
Tel.: +1 (610) 425-8229 |
| Contact avec vendeur |
|
|
|
Détails
| Description | | Type: | Hélicoptère (Turbine) | | Marque: | Agusta | | Modèle: | AW139 | | Millésime: | 2026 | | Attributs: | Epreuve IFR
Enregistré usage commercial | | Emplacement: | France | | Heures totales cellule (TTAF): | 100 h | | Prix: | on request | | Nombre de passagers: | 12 |
| Moteur(s) | | Nombre de moteurs: | 2 | | Marque/Constructeur: | PT6C-67C | PT6C-67C | | Heures totales: | 100 h | 100 h | | TBO (hours): | 5000 h | 5000 h |
| Avionique | • 30-K-261-5CM 4-axis digital automatic flight control system (DAFCS) enhanced with hover mode (HOV) and SAR modes
• 30-K-401-5CM In flight data transmission system interfaced with family HUMS including DAL-200 module for SATCOM iridium Skytrac ISAT 200A. In accordance with IOGP690 (june 2023 official release).
• 30-K-270-5PR Enhanced ground proximity warning system (EGPWS) with offshore mode - provision
• 30-K-270-5RM Enhanced ground proximity warning system (EGPWS) with offshore mode - removable
• 30-K-271-5PR Helicopter operations monitoring program (HOMP) - provision
• 30-K-271-5RM Helicopter operations monitoring program (HOMP) - removable
• 30-K-281-5CM ICS control panel gemelli GEM-05-COCU controlling a total of sixteen (16) headset plugs: four (4) CREW plugs (ICS + radio RX/TX) and twelve (12) PAX plugs (ICS + radio RX)
• 30-K-287-5CM 1st ADF
• 30-K-322-5CM SATCOM Iridium Skytrac ISAT 200A with fleet tracking and e-mail. Service account activation under customer’s responsibility
• 30-K-605-5CM Polycon next generation (PNG) wireless ICS for hoist operations
• 30-K-263-5CM 2-frequency automatic deployable ELT (ADELT) with embedded GPS
• 30-K-324-5PR TCAS II Honeywell TPA 100B - provision
• 30-K-324-5RM TCAS II Honeywell TPA 100B – removable, required for VFR night single pilot operations
• 30-K-413-5PR Weather/search radar Honeywell IntuVue RDR-7000 maritime with volumetric buffer - provision
• 30-K-413-5RM Weather/search radar Honeywell IntuVue RDR-7000 maritime with volumetric buffer – removable
• 30-K-601-5CM Pratt & Whitney FAST solution. Provided as CFE |
| Equipement | • 30-K-458-6CM HD dashboard looking camera in the cockpit integrated with EAFDR
• 30-K-415-6CM Cabin camera forward-facing, SD resolution
• 30-K-356-6CM Tail fin camera
• 30-K-370-6CM Helicopter emergency exit lighting system (HEELS)
• 30-K-390-6PR Integrated life rafts and floats system (DART) up to 18 passengers each - provision
• 30-K-390-6RM Integrated life rafts and floats system (DART) up to 18 passengers each - removable
• 30-K-391-6CM Underbelly activation handle for integrated life rafts and floats system (DART)
• 30-K-377-6PR Goodrich rescue hoist (single type) – provision. Including ICS control panel honeywell AV900, two (2) safety hooks and swivelling light for rescue hoist (belly mounted, RH) - wireless ICS required for HEC operations. Including HD hoist camera provision
• 30-K-397-6CM Winglets strobe lights
• 30-K-429-6CM High intensity strobe light
• 30-K-413-6PR Searchlight Trakkabeam A800 - provision
• 30-K-400-6PR Transversal auxiliary fuel tank (400 kg/132 usgal) - provision
• 30-K-400-6RM Transversal auxiliary fuel tank (400 kg/132 usgal) - removable
• 30-K-404-6CM ISO 45 pressure adaptor for closed circuit refuelling system (LH side). Basic gravity refuelling port on RH side
• 30-K-419-6CM Extended dry-run capability (up to 60 minutes)
• 30-K-421-6CM Enhanced engine starting kit - batteries in parallel. Including 27 ah auxiliary heavy duty battery
• 30-K-434-6CM DART maintenance step (LH side)
• 30-K-435-6CM DART maintenance step (RH side)
• 30-K-XXX-6CM 2nd first aid kit
• Main rotor blades high visibility painting |
| Intérieur | Cabin
• 30-A-011-3CM Lightweight rigid liner cabin
o Polycarbonate liners with lightweight soundproofing
o Standard roof liners with dome lights
o P.A. (Passenger address) system with loudspeakers on ICS
• 30-A-056-3CM 12 Lightweight seats passenger transport layout
o Lightweight crashworthy comfortable passenger seat (qty 12)
o Four (4) seats installed in first row aft-facing
o Four (4) seats installed in second row forward-facing
o Four (4) seats installed in third row forward-facing
• 30-K-173-3CM Air conditioning system
Cockpit
• 30-K-414-4CM Pilot and co-pilot fully adjustable seats including armrests (qty. 1 long, qty. 1 short) in grey colour.
• 30-K-123-4CM Co-pilot hinged window (storm window)
• 30-K-127-4CM Windshield washing system
• 30-K-130-4CM Pilot and co-pilot approach plate/chart holders with lights |
| Remarque / Autres | Configuration Offshore
Empty weight 4,580 kgs
MTOW 7,000 kgs
Avionics phase 8
Paint Delivered green
Available for financial and operation lease only
Highlights
• Original OEM warranty 3 years/2,000 hours
• HEELS
• ADELT
• HUMS
• ADS-B out
• DART life rafts and floats
• Goodrich rescue single hoist provisions
• Searchlight Trakkabeam A800 provision
• Aux fuel tank
• 4 axis DAFCS with HOV and SAR modes
• EGPWS
• HOMP
• Skytrac ISAT 200
• Dual GPS
• TCAS II Honeywell TPA 100B
• Weather/search radar RDR-7000 maritime
• Pratt & Whitney FAST solution
• Air conditioning
• Enhanced airborne flight data recorder |
